FLOW

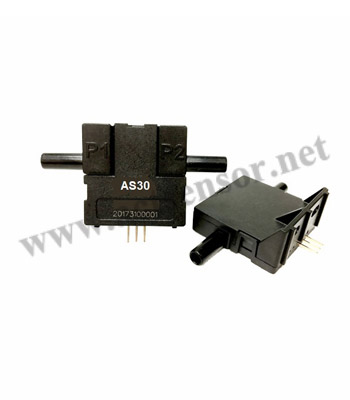

MASS AIR FLOW SENSOR(AS30)

Being quality centric organization we ACT Sensors Pvt. Ltd are counted amongst the one of the best Manufacturers, Suppliers, Provider, Traders, Wholesaler & Dealer of Thermal Mass Air Flow Sensor in Mumbai, Navi Mumbai, Thane and all over India.AS-30 features third-generation thermal flow die, benefiting from the latest innovations in microfabrication. The sensor die uses a pair of thermopiles to detect changes in temperature gradient caused by mass flow, delivering excellent signal-to-noise, and repeatability.

The “solid state” thermal isolation structure on the sensor die eliminates the need for surface cavity or fragile membrane used in competing technologies, making the sensor resistant to clogging and pressure shock. The AS30 series includes the analog output AS30V and the digital I²C output AS30D.

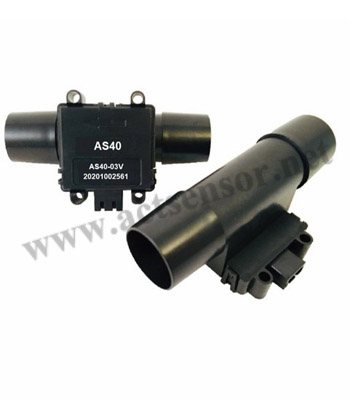

MASS AIR FLOW SENSOR(AS40)

Being quality centric organization we ACT Sensors Pvt. Ltd are counted amongst the one of the best Manufacturers, Suppliers, Provider, Traders, Wholesaler & Dealer of Mass Air Flow Sensor in Mumbai, Navi Mumbai, Thane and all over India. AS40 features ACT’s third-generation thermal flow die, benefiting from the latest innovations in microfabrication. The sensor die uses a pair of thermopiles to detect changes in temperature gradient caused by mass flow, delivering excellent signal-to-noise and repeatability.

The “solid state” thermal isolation structure on the sensor die eliminates the need for surface cavity or fragile membrane used in competing technologies, making the sensor resistant to clogging and pressure shock. The AS40 series includes the analog output AS40V and the digital I²C output AS40D.

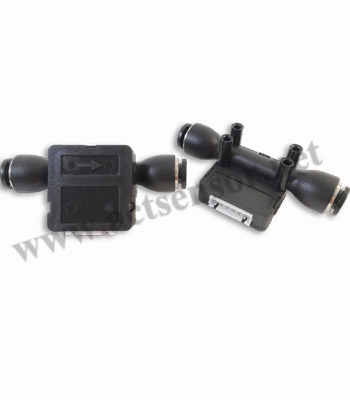

MASS AIR FLOW SENSOR(AS50)

ACT offers the AS50 series of mass air flow sensors specifically for portable medical devices. The sensor is fast and accurate, enabling the precise amount of gas to be delivered in a pulse mode. The sensor’s small footprint fits nicely inside a space constrained housing. The push-to-connect fitings supports efficient assembly.

The flow direction (forward or backward) can be customized to work with an existing system layout. AS50 features the third-generation thermal flow die, benefiting from the latest innovations

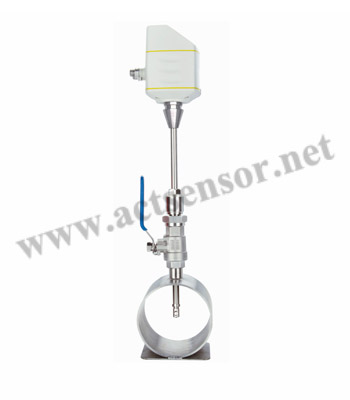

COMPRESSED AIR FLOW SENSOR (S-401)

The S401 compressed air flow meter is designed to be easy to use, affordable and it's offering a wide measurement range. This makes it easy for you to choose the right flow meter, the S401 which fits your needs.

The S401 is a thermal mass flow meter, based on its measurement principle it's not required to compensate the compressed air pressure and temperature, so you do not need any additional measurement installations to measure the flow and the consumption

REMOTE MONITORING SOLUTIONS

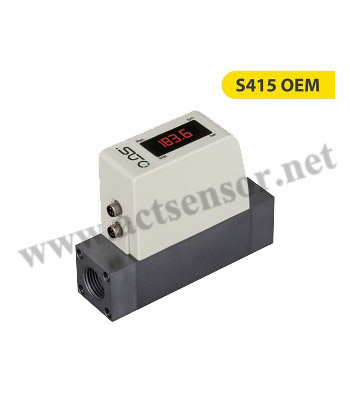

The SUTO S415 and S418 thermal mass flowmeters offer compressed air flow and consumption measurement directly at the point of use. They are designed to be seamless integrated into your compressed air system or in your gas application.

These highly economical units will help you improve compressed air system efficiency, while helping reduce compressed air usage and operating costs. Both versions come standard with wireless communication interface to help the user quickly and easily check the flow meter readings or adjust the settings via the SUTO flow meter app.

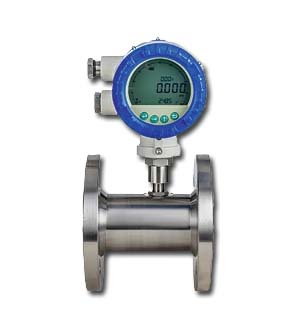

ASTF Series LIQUID TURBINE FLOW METER

The ASTF Series Liquid Turbine Flow Meter is designed to provide accurate and reliable measurement of liquid flow in a wide range of industrial applications. Fluid entering the meter first passes through an inlet flow straightener, which reduces turbulence and ensures a stable flow profile. The fluid then flows through a precision turbine rotor, causing it to rotate at a speed directly proportional to the fluid velocity. As each turbine blade passes through the magnetic field generated by the meter's pickup sensor, an AC voltage pulse is produced, creating an output frequency that is proportional to the volumetric flow rate.

With its high accuracy and robust construction, the ASTF Series is well suited for demanding applications in the petrochemical and energy sectors, oil and gas industry, and clean water systems. The meter delivers consistent performance for flow monitoring, process control, and resource management, making it an ideal solution for both industrial and utility environments where precise liquid flow measurement is essential.

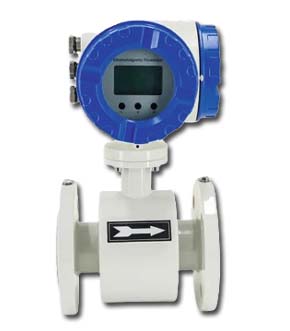

ASEF Series ELECTROMAGNETIC FLOW METER ATEX TYPE

The ASEF Series Electromagnetic Flow Meter (ATEX Type) measures the flow of conductive liquids using Faraday’s Law of Electromagnetic Induction. As liquid passes through the meter’s magnetic field, a voltage is generated that is directly proportional to the velocity of the flowing medium. This enables highly accurate and reliable flow measurement without any moving parts, ensuring low maintenance and long-term performance.

Designed for demanding industrial environments, the ASEF Series offers high accuracy and a wide flow measurement range. It is widely used in wastewater treatment, water distribution networks, chemical processing, mining and metal industries, pulp and paper production, and food and beverage applications, where precise monitoring of corrosive, abrasive, high-solid-content, or hygienic process fluids is required.
