Moisture

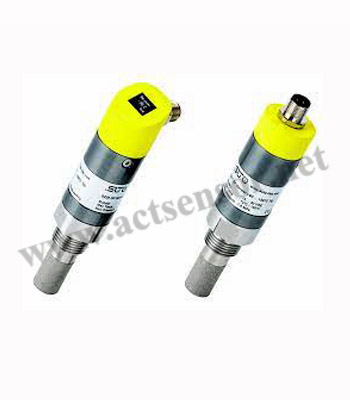

DEW POINT TRANSMITTER (-100⁰C)

Being quality centric organization we ACT Sensors Pvt. Ltd are counted amongst the one of the best Manufacturers, Suppliers, Provider, Traders, Wholesaler & Dealer of Dewpoint Transmitters in Mumbai, Navi Mumbai, Thane, Pune , Delhi , Hyderabad , Bengaluru , Bhopal , Ahmedabad , Faridabad , Ghaziabad , Vadodara ,Bhubaneswar and all over India.

Benefits:

• Compact size makes them ideal for dryer installations
• Optional display for on-site values. Display can be rotated by 340 ° to fit your needs
• User friendly signal outputs: 2-wire analog 4 ... 20 mA or 3-wire analog 4 ... 20 mA + Modbus/RTU
• IP65 casing provides robust protection
• Low maintenance costs due to stable and reliable measurements which increase calibration intervals

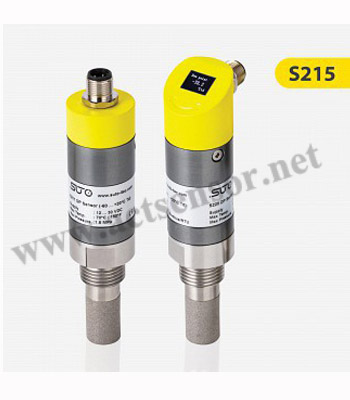

DEWPOINT TRANSMITTER (-80⁰C)

Display Option

We ACT Sensors Pvt. Ltd. are recognised as a one of the best Manufacturers, Suppliers, Provider, Traders, Wholesaler, Dealer of Dewpoint Transmitters(-80⁰C). These are manufactured using high grade raw material and latest technology. We manufacture, supply Dewpoint Transmitters(-80⁰C) to our precious clients in Mumbai, Navi Mumbai, Thane over India. The OLED display directly mounted on the sensor provides on-site real time values. The display can be easily rotated by 340 ° to fit your application.

Robust Materials

The main body is made from high class aluminum alloy with a soft finish. The process connection is a 1.4301 (SUS 304) stainless steel connection, made to last forever. Top cover made from aluminum at the same quality as the main body. The optional display cover is made from robust Polycarbonate with ABS reinforcement to withstand the rough environment.

DEWPOINT TRANSMITTER (-20⁰C)

Reiable Measurement

The stainless steel sinter filter cap protects the sensor from dust and other impurities. At the same time it offers fast response times and reliable measurement results.

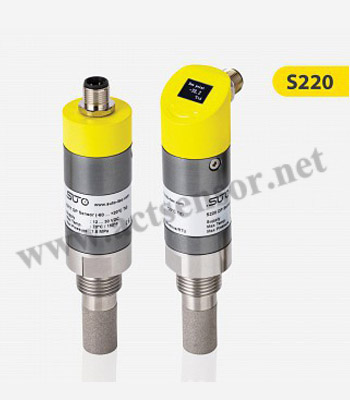

S220 with unique QCM Sensor

: Our QCM sensor is the result of years of high-tech research and development. The sensor was especially designed for low dew point applications where other sensor types fail. The combination of QCM and the well known Polymer sensor makes the S220 the worlds first model to measure accurate over the whole range, from -100 °C Td up to +20 °C Td by switching automatically between the two sensor elements as needed.

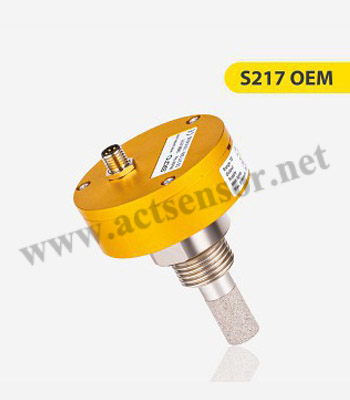

OEM DEWPOINT TRANSMITTER (-60⁰C)

The SUTO dew point sensor S217 provides reliable and long term stable dew point monitoring in industrial applications. The newly developed sensor features improved signal and stability in demanding industrial applications. It’s designed for OEM applications in desiccant and refrigeration dryers. Through our new sensor technology paired with a compact casing, S217-OEM can be offered at very attractive prices.

This allows applications in smaller dryers and point of use dryers using a more energy efficient dew point control. The measured dew point is output via the loop-powered 4 ... 20 mA signal, 3-wire 4 ... 20 mA output or through Modbus/RTU. Sensor parameters such as analogue output scaling, physical units, can be set ex factory

PORTABLE DEWPOINT METER (-100⁰C)

ASPS-71 Intelligent Pressure Switch is an intelligent pressure measurement & control product which integrates pressure measurement, display, output and control. This product is in full-electronic structure. The piezoresistive silicon pressure sensor is adopted in the front end. The output signal is processed by the amplifier with high precision and low temperature drift, and then sent into high precision A/D converter.

Through arithmetic processing by microprocessor, the output signal is displayed on site with 2-way switch quantity and 4～20mA analog quantity, accomplishing the measurement and control for the control system pressure. This intelligent digital pressure controller has advantages of flexible use, simple operation, easy commissioning and high safety and reliability. It is widely used in hydropower, tap water, petroleum, chemical, mechanical, hydraulic and other industries for the measurement, display and control of pressure of fluid media.

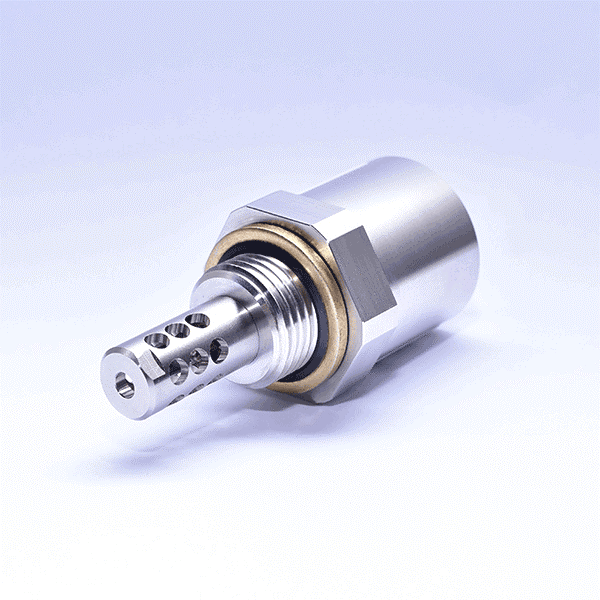

MOISTURE IN OIL TRANSMITTER

MiO-21 is a fast, reliable and accurate online detector for water activity (aw) in oil and temperature (T). It is very suitable for integration in OEM application with its rugged housing and excellent performance. MiO-21 is ideal for online monitoring of moisture in lubrication, hydraulic or insulation oil, which is significant for the long-term performance and preventive maintenance of plant and machinery.
